Newton HydroCoat 107 Elastic 2K – 30kg

Brand: Newton Waterproofing Systems
Product Code: 107-F
In Stock

Newton HydroCoat 107 Elastic 2K is a cementitious coating that ensures robust waterproofing and protection for concrete and masonry. Its spray application makes it perfect for large-scale projects, ideal for reservoirs, tunnels, water tanks, basements, podium decks, flat roofs, and balconies.

£272.48 incl. VAT
£227.07 excl. VAT

Qty:

Cementitious flexible waterproofing membrane. Newton HydroCoat 107 Elastic 2K is a cementitious coating that ensures robust waterproofing and protection for concrete and masonry. Its spray application makes it perfect for large-scale projects, ideal for reservoirs, tunnels, water tanks, basements, podium decks, flat roofs, and balconies.

Tailored for efficiency, HydroCoat 107 Elastic 2K can be spray-applied, streamlining waterproofing for extensive projects. From reservoirs to balconies, it provides a durable shield against moisture.

Suited for a range of structures including basements, podium decks, and flat roofs, HydroCoat 107 Elastic 2K stands out as a versatile solution. Its cementitious formula ensures effective, long-lasting waterproofing.

Key Benefits

  • BDA Agrément for proven performance.
  • Pre-packaged materials easily mixed on site.
  • Tough, flexible coating which maintains its elastomeric properties even under immersed conditions to accommodate movement in cracks.
  • Excellent adhesion to sound prepared concrete and masonry substrates, as well as steel.
  • Dense matrix offers low permeability to water and carbon dioxide gas.
  • A 2mm coat provides the equivalent to 135mm of good quality concrete cover.
  • Can be applied to damp substrates in temperatures down to 5°C.
  • Water-based product.
  • Non-toxic when cured.

Typical Applications

Waterproofing of:

  • Podium decks, flat roofs, terraces and balconies.
  • Water-retaining structures such as water tanks and reservoirs.
  • Earth-retaining foundation walls to both the positive and negative side.
  • Internal concrete surfaces of walls and rafts or slabs to earth-retained structures such as habitable basements, car parks, plant rooms and lift-pits.

Suitable Substrates:

Correctly prepared substrates of:

  • Concrete of at least 20kN
  • Steel*
  • Structural masonry/mortar
  • Screed * Bond to abraded steel is very good but not tested and so is suitable only for termination detailing

Suitable Surfaces:

Waterproofing of:

  • Walls – Positive pressure and Negative pressure
  • Slab/raft – Negative pressure
  • Soffit – Negative pressure
  • Deck – Positive pressure

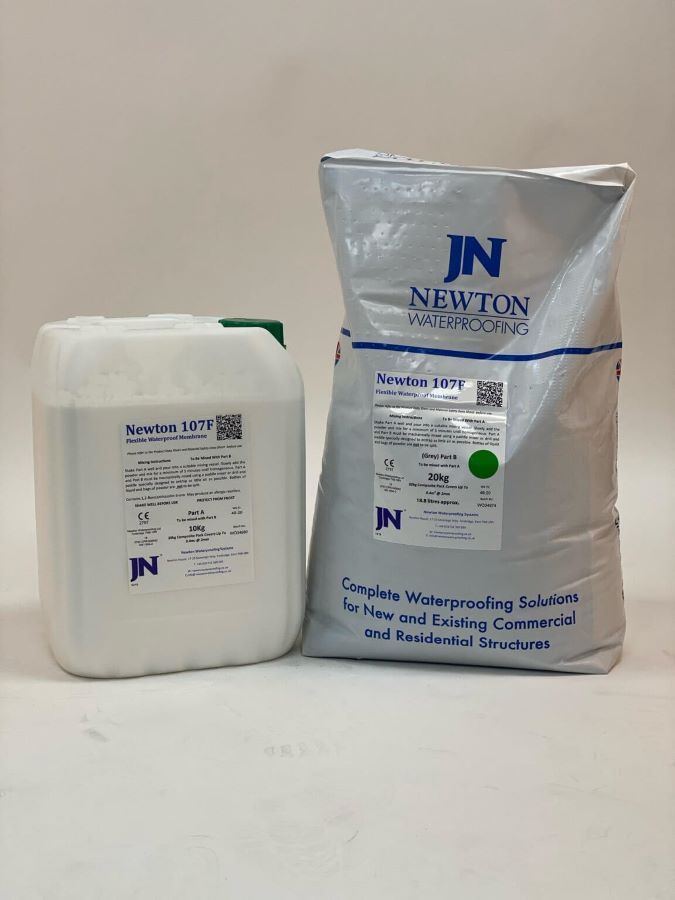

Packaging:

The product consists of two parts, A and B, both of which are measured and ready to be mixed:

  • Part A (Container of liquid) 10 kg
  • Part B (Bag of powder) 20 kg
Features Result Units
Form – Two components Part A liquid + Part B powder
Colour Grey
Density/Specific gravity 1.6
Pack size 30 kg
Yield per kg 0.63 litres
Shelf life 24 Months
Pot life @ 20 degrees C & RH of 60% 45 Minutes
Finishing time Within 10 minutes of placing
Application rate – in one or two coats 3.2 kg/m2
Substrate application temperature +5 to + 30 degrees C
Service temperature -15 to +80 degrees C
Odour Low – Characterised as polymeric
VOC content – Part A only (only when cured) 1.76 g/L



Curing 5°C 10°C 15°C 20°C 25°C Units
Ready for next coat 8 7 6 5 3 Hours
To not be adulterated by rain 5 4 3 2.5 2 Hours
Ready for temporary traffic/protection boards 72 72 72 48 48 Hours
Ready for flood/hosepipe test 7 7 7 7 7 Days
Fully cured 28 28 28 28 28 Days



Cured Performance Result Units Test Methods
Colour Grey
Membrane thickness in one or two coats 2.0 mm
Adhesion to concrete 0.89 MPa BS EN 1542
Tensile strength – Ambient 0.5 MPa BS 6319-7:1994
Tensile strength – Immersed 0.4 Mpa BS 6319-7:1994
Elongation at break – Ambient 120-130 % Manufacturer test
Elongation at break – Immersed 70-80 % Manufacturer test
Static crack bridging capability (class Aa5) >2.5 mm BS EN 1062-7 – Method A
Dynamic crack bridging capability 1000 cycles 0.2-0.5mm BS EN 1062-7 – Method B
Compressive strength- 28 days 8 to 10 MPa BS 4551
Hardness 84.0 Shore A BS EN ISO 868:2003
Flexural strength 3.5 – 4.0 MPa EN196-1
Water Permeability Coefficient 5.37 x 10-¹⁶ m/sec DIN 1048 Part 1
Water vapour diffusion resistance – Sd value 1.55 m BS EN ISO 7783-2
Water vapour diffusion resistance – µ resistance 775 MNs/g Calculation from Sd value
Water vapour diffusion resistance 7.75 MNs/g Calculation from Sd value
Water resistance – Positive side 10.0 Bar DIN 1048
Water resistance – Negative side 1.50 Bar DIN 1048
Liquid Water Transmission Rate (Capillary Absorption and Permeability to Liquid Water) w = 0.0086 kg.m-².h-⁰.⁵ EN1062-3
Permeability to CO² 57*** m EN 1062-6
Thermal compatibility 0.88 MPa EN 13687-1
Water Permeability Coefficient

Equivalent Concrete Thickness

5.37 x 10-16m/sec

2mm = 2270mm of concrete

DIN 1048
Reaction to fire classification – Euroclass B – s1, d0 BS EN 13501-1
UV Resistance – Stable but will discolour 50 Years UNI EN ISO 11507:2007
Root resistance – Stable but will discolour Barrier to Root Penetration (Lupin test) Years DD CENT/TS 14416
pH 12
