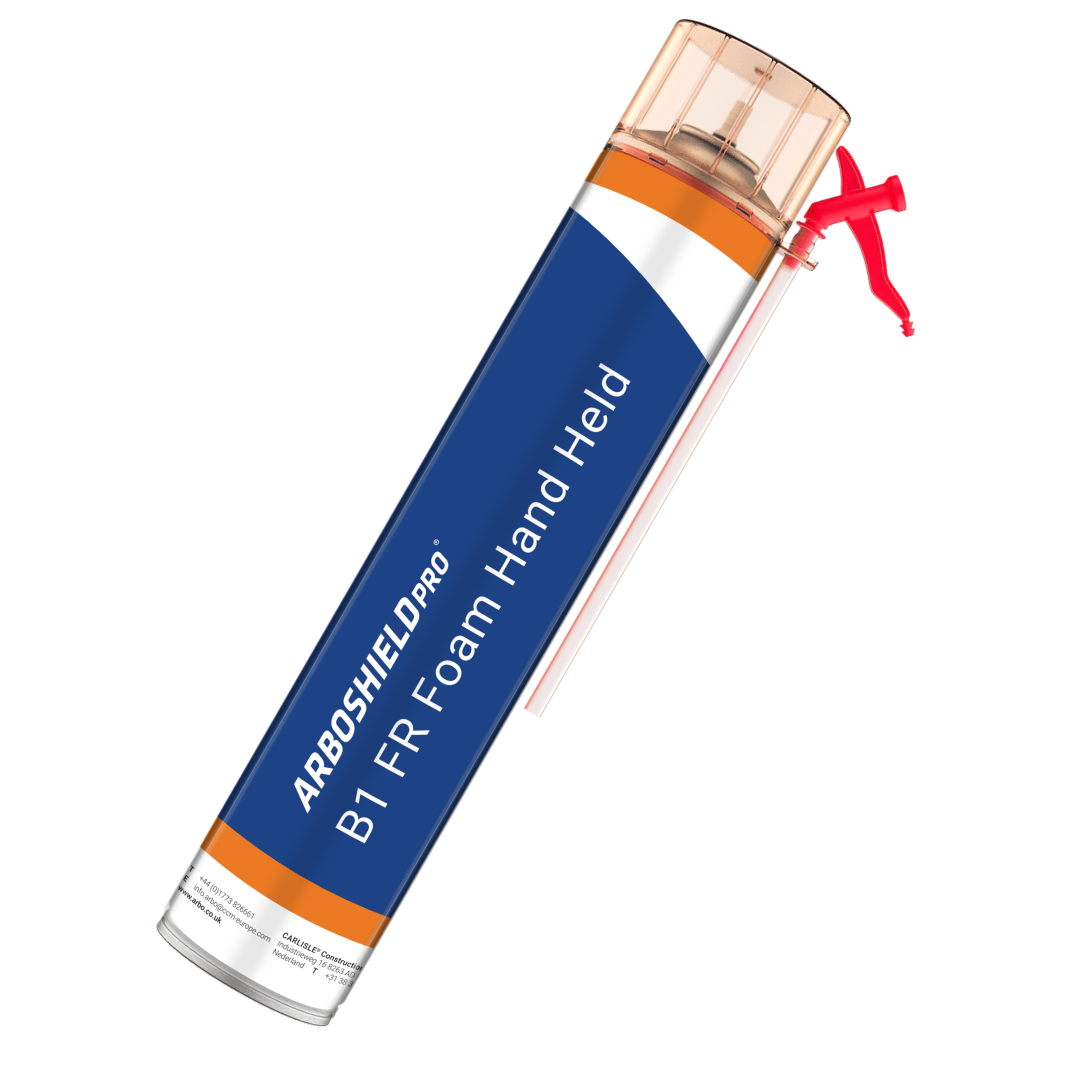

ARBOSHIELD Pro B1 FR Foam Hand Held 750ml (Box of 12)

ARBOSHIELD Pro B1 FR Foam Hand Held

Main Applications

ARBOSHIELD Pro B1 FR Foam Hand Held is suitable for sealing joints in fire rated walls, installation of fire-proof doors and windows, filling and sealing works in places with heightened requirements concerning building materials reaction to fire properties, and regular filling and sealing works in construction sector materials like wood, concrete, stone, plaster, metal, PVC and polystyrene.

Key Performance Attributes

Fire rated up to 240 minutes.

Fire class B1 (DIN).

Moderate expansion avoids deformation of building elements.

High mechanical strength.

High thermal and acoustic insulation value.

Application Instructions

Application conditions

Air temperature during use should be between +5 °C and +30 °C. Make sure the ambient temperature stays within this range until the foam has fully cured.

Can temperature during application should be between +10 °C and +25 °C, with best results at +20 °C.

Surface preparation

Remove dust, loose particles and oil stains from the surfaces.

Moisten dry substrate to ensure better results.

Protect adjacent surfaces with paper, plastic film or other suitable material.

If needed, add additional shield outside for weather protection against rain, wind and similar conditions.

Application method

Shake the can vigorously at least 20 times. Remove the cap. Hold the foam can in upright position with valve up. Screw the straw applicator tightly to the foam can valve.

Hold the can upside down when extruding the foam. Foam output can be adjusted with the applicator trigger.

Fill joints up to approximately 50%, as the foam expands. In case of larger joints, apply foam in several layers and moisten slightly between each layer to ensure better results.

Cleaning

Excess foam can be cut after it has fully cured.

Uncured foam can be removed with acetone.

Cured foam can be removed mechanically.

Packaging

750ml can, 12 cans per box.

Storage conditions and shelf life

Shelf life is 12 months from production date if stored in unopened packaging in a cool and dry place at +5 °C to +30 °C.

Do not expose to temperature over +50 °C, and do not keep near heat sources or in direct sunlight.

Store and transport in vertical position.

Secure cans before transport.

Fire resistance tested according to EN 1366-4 and rated according to EN 13501-2:

Fire Resistance Classification	Joint Depth
EI 90-V-X-F-W10	Joint depth 100 mm and over
EI 45-V-X-F-W20	Joint depth 100 mm and over
EI 30-V-X-F-W30	Joint depth 100 mm and over
EI 30-V-X-F-W40	Joint depth 100 mm and over
EI 60-T-X-F-W15	Joint depth 100 mm and over
EI 45-T-X-F-W30	Joint depth 100 mm and over
EI 240-V-X-F-W10	Joint depth 200 mm and over
EI 240-V-X-F-W20	Joint depth 200 mm and over
EI 120-V-X-F-W30	Joint depth 200 mm and over
EI 90-V-X-F-W40	Joint depth 200 mm and over
EI 180-T-X-F-W15	Joint depth 200 mm and over
EI 180-T-X-F-W30	Joint depth 200 mm and over

V – vertical joint.

T – horizontal joint.

This classification is valid for the following end use applications.

ARBOSHIELD Pro B1 FR Foam Hand Held shall be used as a fire resistant joint seal in joints of concrete, block work and masonry vertical separating elements with density of 450 kg/m3 or greater and thickness of 100 mm and over.

Linear joints shall have vertical or horizontal orientation and shall be filled throughout.

Joint seal shall be fitted flush with the surface of the supporting construction and protected with steel sheet, thickness at least 0,6 mm.

Movement capability ±7,5% is permitted.
