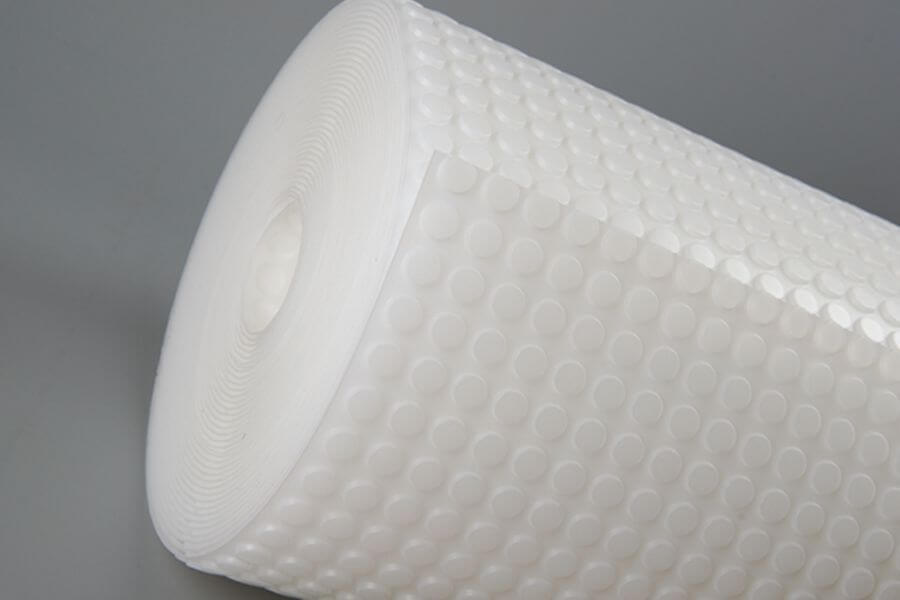

Newton DampSafe 603 Floor Membrane – 2m x 20m

Brand: Newton Waterproofing Systems
Product Code: M23
In Stock

Newton DampSafe 603 is a high quality flooring membrane suitable for use above new and existing floors. The 3mm studs allow for pressure equalisation of dampness within the floor below allowing for dissipation at room perimeter and subsequent drying of the floor.

£168.96 incl. VAT
£140.80 excl. VAT

Qty:

3mm Loose Laid Flooring Membrane. Newton DampSafe 603 is a high quality flooring membrane suitable for use above new and existing floors. The 3mm studs allow for pressure equalisation of dampness within the floor below allowing for dissipation at room perimeter and subsequent drying of the floor.

Key Benefits:

  • Does not transfer substrate movement to the floor finish above.
  • Has a high compressive loading stability.
  • Slight compression under footfall makes it ideal for installation as the floor membrane for performance sports floors.
  • Inert and highly resistant to water, alkalis, hydrocarbons, saline solutions and organic acids.
  • Not affected by minerals, and resistant to bacteria, fungi and other small organisms.

Typical Applications:

  • As a damp proof flooring membrane
  • As the membrane of choice for performance sports floors
  • As the damp proof floor membrane for use with Newton damp proofing wall membranes
  • Can be used as the flooring membrane within the Newton CDM System if specified by a trained waterproofing surveyor

Suitable Floor Coverings:

  • Non-bonded floor finishes, including laminate and timber floorings, and particle and ply floorboards
Features Result Units
Material HDPE
Colour White/Translucent
Density 500 g/m2
Width (M19/M23) 1.0 / 2.0 m
Length (M19/M23) 10.0 / 20.0 m
Area (M19 / M23) 10 / 40 m2
Stud depth 2.5 mm
Height 3.0 mm
Vicat softening temperature 126 ºC
Packaged weight 23.0 kg
Service temperature -40 to +80 ºC
Installed Performance Result Units Test Method
Thickness at 100 kPa 2.64 mm EN ISO 25619-1
Thermal conductivity 0.461 W/mK EN 12667
Water vapour diffusion resistance – Sd value >604 m BS EN 1931
Water vapour diffusion resistance – µ value >1208000 µ Calculated from SD value
Water vapour diffusion resistance >3020 MNs/g Calculated from SD value
Resistance to fire Euroclass E BS EN 13501-1
Chemical resistance – Excellent 100 % EN14030
Oxidation resistance – Excellent 100 % EN ISO 13438
