Protech SAGM (Self Adhesive Gas Membrane)Protech SAGM (Self Adhesive Gas Membrane)

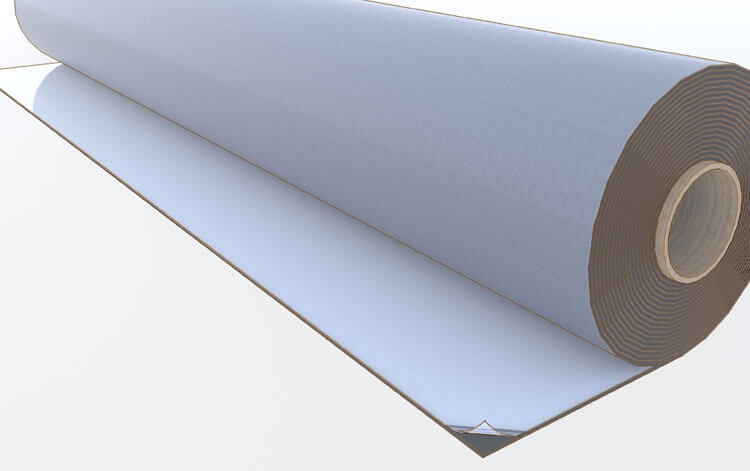

Proctor Protech SAGM Self-Adhesive Gas Membrane – 1.05m x 19.05m

Brand: Proctor Group
Product Code: PSAGM
In Stock

Proctor protech SAGM is a self adhesive gas and waterproofing membrane, for use in detailing and vertical installation applications. Protech SAGM is 1.05m x 19.05m.

£355.68 incl. VAT
£296.40 excl. VAT

Qty:

Protech SAGM is a self adhesive gas and waterproofing membrane for use in detailing and vertical installation applications.

Applications:

Protech SAGM can be used on any site where Carbon Dioxide, Radon or Methane is present. Methane will occur on any construction, on any sites previously used for landfill. Such conditions can exist on household, commercial and industrial sites. Protech SAGM is perfect for detailing work around awkward penetrations and finishes. It is suitable for vertical, horizontal, stepped and cavity applications, however care should be taken when applying to porous materials that Protech GM Primer be used first.

Typical Properties Test Method Result
Roll size EN 1848-2 1.05m x 19.05m
Thickness EN 1849-2 1.5mm
Weight EN 1849-2 1700g/m2
Water tightness to liquid water EN 1928 Pass
Resistance to Static Load EN 12730 20kg Pass
Tensile Properties, Maximum Tensile Stress EN 12311-2 CD ≥ 2N/mm2
MD ≥ 2N/mm2
Tensile Properties, Elongation at Break EN 12311-2 CD ≥ 120%
MD ≥ 120%
Durability of Watertightness against ageing EN 1847 Method A 60 KPa Pass
Durability of Watertightness against chemicals EN 1847 Method A 60 KPa Pass
Resistance to Impact EN 1269 1 ≥ 700mm
Resistance to tear (Nail Shank) CD/MD EN 12310-1 CD ≥ 110N
MD ≥ 110N
Reaction to Fire (Euro Class) EN 13501 Class F
Joint Strength EN 12317-2 ≥ 45N
Water Vapour Transmission (Density Flow rate) EN 1931 0.013 g/(day/m2)
Water Vapour Transmission (Resistance factor, μ) EN 1931 2380000μ
Methane GTR ISO 15105-1 < 10ml/m2.day
Carbon dioxide GTR ISO 15105-1 < 10ml/m2.day
Radon Diffusion 5.0 x 10-14
Roll weight 33kg
