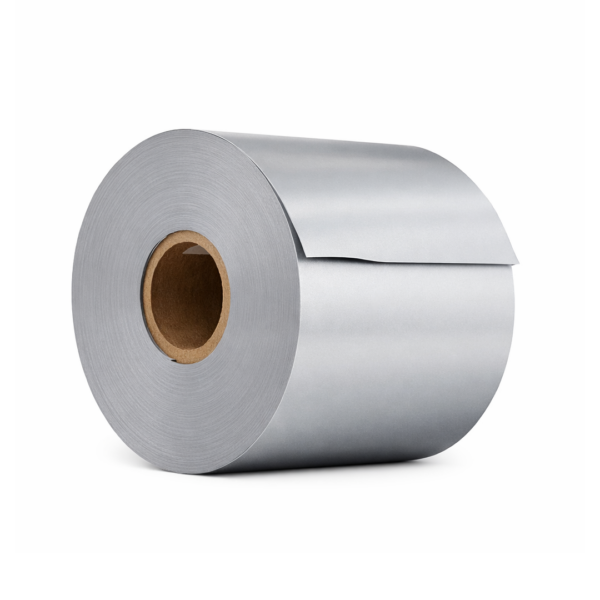

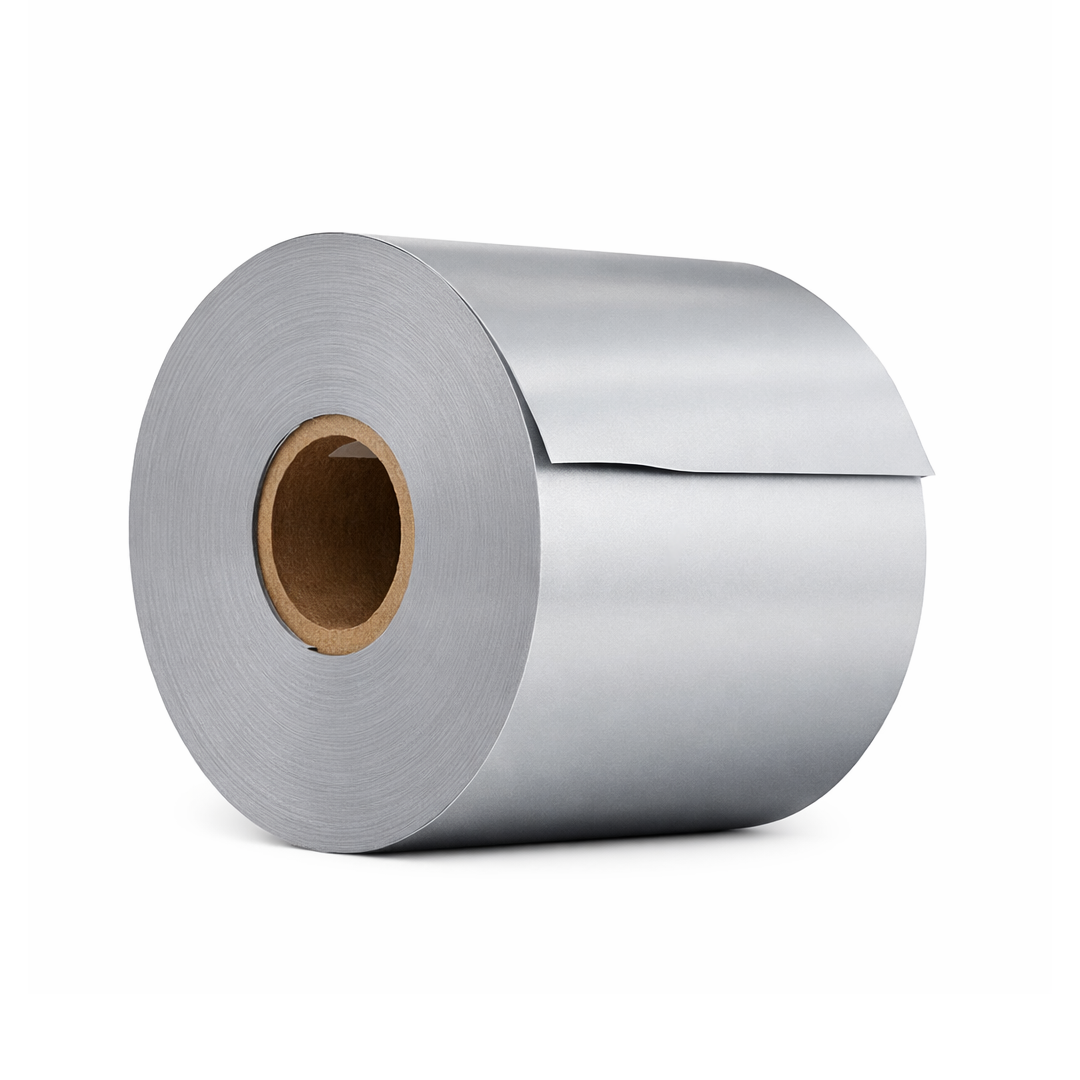

VANDEX FLEXTAPE E 200/1 – 20m x 1mm x 200mm

High-performance sealing tape for movements and construction joints. Vandex Flextape E is a thermoplastic elastomer (TPE).

Extremely durable, it has excellent resistance to weathering
and is UV and chemically stable. The bond to the substrate is achieved using an adhesive.

Uses:

The Flextape system bridges and seals expansion and
construction joints, as well as cracks in concrete structures.
The maximum permissible expansion under continuous load
depends on the thickness of the tape and the width of the
non bonded expansion zone. The Vandex Flextape system is resistant to hydrostatic pressure on the active side. On the passive side, in combination with a counterpressure structure.

Benefits:

• Permanent flexible waterproofing seal
• Approved for drinking water
• High elasticity depending on the thickness of the tape and width of the expansion zone
• Thermal welding ensures secure, watertight joints

Areas of Application:
The VANDEX FLEXTAPE E system bridges and seals
expansion and construction joints as well as cracks in
concrete constructions.

The maximum permissible expansion under continuous load depends on the thickness of the tape and the width of the unbonded flex zone.

The VANDEX FLEXTAPE E system is resistant to hydrostatic pressure on the active side and on the passive side, only in combination with a counterpressure structure. In presence of a negative water pressure up to 0.3 bar, there is no need for a counterpressure structure.

Storage:

12 months from date of production if stored properly in undamaged, unopened original sealed packaging in dry conditions, protected from sun (UV), at temperatures between +5 and +30 °C. Opened and unprotected rolls must be used within 2 months.

Lap Joint Welding:

Hot air welding ensures the elasticity of all VANDEX FLEXTAPE E connections. Welding temperature: 340°C The minimum overlap of the tape is 10 cm. Before welding, roughen the contact area with sand paper 80 grit.

Health and Safety:

Please refer to Safety Data Sheets for VANDEX FLEXTAPE E and corresponding adhesive.
