Visqueen Low Permeability Gas Membrane 500mu – 4m x 12.5m Yellow

Brand: Visqueen
Product Code: RS058893
In Stock

Visqueen Low Permeability Gas Membrane is a BBA certified thermoplastic membrane used as a high performance radon membrane and/or damp proof membrane positioned within the ground foor construction either above or below the structural foor slab.

£212.38 incl. VAT
£176.98 excl. VAT

Qty:

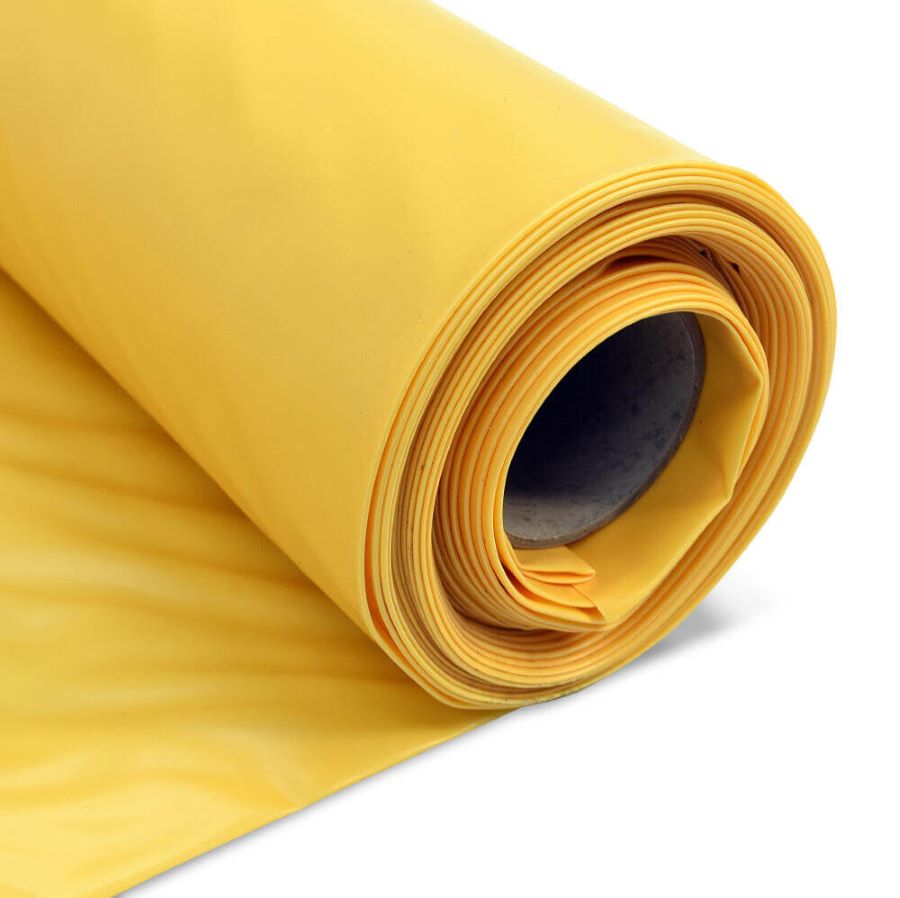

Visqueen Low Permeability Gas Membrane is a robust co-polymer thermoplastic gas membrane, 0.5mm thick, yellow in colour and supplied 4m x 12.5m in a center folded roll.

Features & benefits

  • BBA certified – third-party accreditation
  • Complies with NHBC Foundation’s NF94 guidance for use in Type A and Type B membrane locations in reinforced cast in situ suspended floor slabs and rafts
  • Complies with NHBC Amber 1 – suitable for low gas risk NHBC housing sites
  • Flexible – easy to detail and install on site
  • Supplied centre folded – reduces the risk of cracks in screed and limits creases
  • Multi functional – also acts as a radon and damp proof membrane
  • Dual jointing methods – lap joints can be taped or heat welded
Property Test Method Units Compliance Criteria Result
Visible defects EN 1850 -2 – Pass/Fail Pass
Length EN 1848-2 m -10%/+10% 12.5
Width EN 1848-2 m -2.5%/+2.5% 4
Straightness EN 1848-2 – Pass/Fail Pass
Thickness EN 1849-2 mm -12%/+12% 0.5
Tensile strength – MD EN 12311 N/mm² MLV 15
Tensile strength – TD EN 12311 N/mm² MLV 15
Tensile elongation – MD EN 12311 % MLV 400
Tensile elongation – TD EN 12311 % MLV 400
Joint strength EN 12317-2 N MDV 298
Watertightness 2kPa EN 1928 – Pass/Fail Pass
Resistance to impact EN 12691 mm >MLV 200
Durability (artifcial ageing) EN 1296 and EN 1928 – Pass/Fail Pass
Durability chemical resistance EN 1847 – Pass/Fail Pass
Resistance to tearing (nail shank) CD EN 12310-1 N MDV 333
Resistance to tearing (nail shank) MD EN 12310-1 N MDV 335
Water vapour transmission – resistance EN 1931 MNs/g MDV 2100
Water vapour transmission – permeability EN 1931 g/m²/d MDV 0.08
Radon permeability SP Test Method m2/s MDV 5.477 x 10¯¹²
Radon transmittance SP Test Method m/s MDV 1.095 x 10-8
Carbon dioxide permeability IS0 2782 m/s/Pa MDV 2.8 x 10-17
Methane gas transmission rate ISO 15105-1 ml/m²/day/atm MDV 213
Reaction to fre EN 13501-1 Class MDV F
