Filoform FiloSeal+HD Duct Sealing SystemFiloform FiloSeal+HD Duct Sealing System

Filoform FiloSeal+HD 125mm-160mm Duct Sealing System

Brand: Filoform
Product Code: 280020
In Stock

The FiloSeal+HD duct sealing system is an engineered universal solution for sealing larger heavy cables and pipes in ducts, boreholes or transit frames of 125-160mm.

FiloSeal+HD is suitable for sealing any cable or pipe configuration in one duct and allows easy re-entry to add or remove cables or pipes as required.

£183.90 incl. VAT
£153.25 excl. VAT

Qty:

The FiloSeal+HD duct sealing system is an engineered universal solution for sealing larger heavy cables and pipes in ducts, boreholes or transit frames of 75-110mm.

FiloSeal+HD is suitable for sealing any cable configuration or pipes contained in one duct and also allows easy re-entry of the seal to add or remove cables or pipes as required.

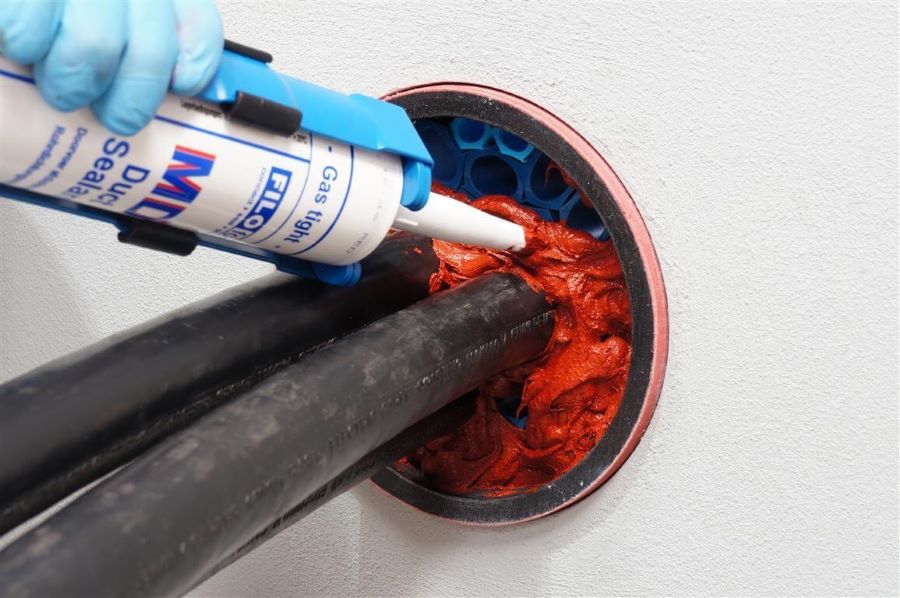

The Filoform duct sealing system uses the Filoform MD+ sealant which is easily applied from a standard skeleton gun. The high quality, one component, flexible sealant is based on a silicone compound that air-cures. After application and full curing, the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

FiloSeal+HD is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses strong, but flexible hexagonal tubes to support the cable and provide a strong backing for the seal. The unique design of the hexagonal tubes makes positioning and separation of the cables very simple while also providing a strong backing for the MD+ to be applied on.

Features:

  • Flexible, one component, adhesive and sealing compound in a cartridge – (310ml)
  • Kits are complete with backing and mastic to fill an empty duct of the quoted kit size
  • High levels of gas and water tightness
  • Excellent adhesion, applicable to all common building materials
  • Shows fire resistance properties (for full fire resistance see FiloSeal+HD Fire)
  • Resistant against water, alkaline, chemical agents
  • Resistant to termites (Mastotermes Darwiniensis) Northern Australian termites
  • Resistant to rats
  • Resistant to Hydrogen Sulphide / Methane and many other gases (NedLab)
  • Non-corrosive
  • Solvent-free
  • Shock absorbing
  • Non-toxic, neutral and almost odourless
  • Also suitable for limiting the EX-zones during transitions (observe chemical resistance)
  • Complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15 (B)(2)
  • Suitable for any shaped duct/borehole/opening
  • WIMES Compliant (3.02 2013 6.4.3.2 b)
  • Quick and easy installation
  • A complete kit
  • Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Engineering duct sealing solution
  • Suitable for renovations, can be installed retrospectively
Specifications
Density 1.2 gr/cm³
Pressure resistance < 2mm ISO 7390
Pulling force 1000 N
Bend test 10xd at 45°
Colour red-brown
Skin over time (23°C/55% RH) ± 15 minutes
Curing 3 mm / 24 hours
Hardness Shore A 30 DIN 53505
Elongation 100% DIN 53504
Tensile strength 0.8 N/mm² DIN 53504
Operating temperature +5°C to +40°C
Temperature resistance -40°C to +120°C
