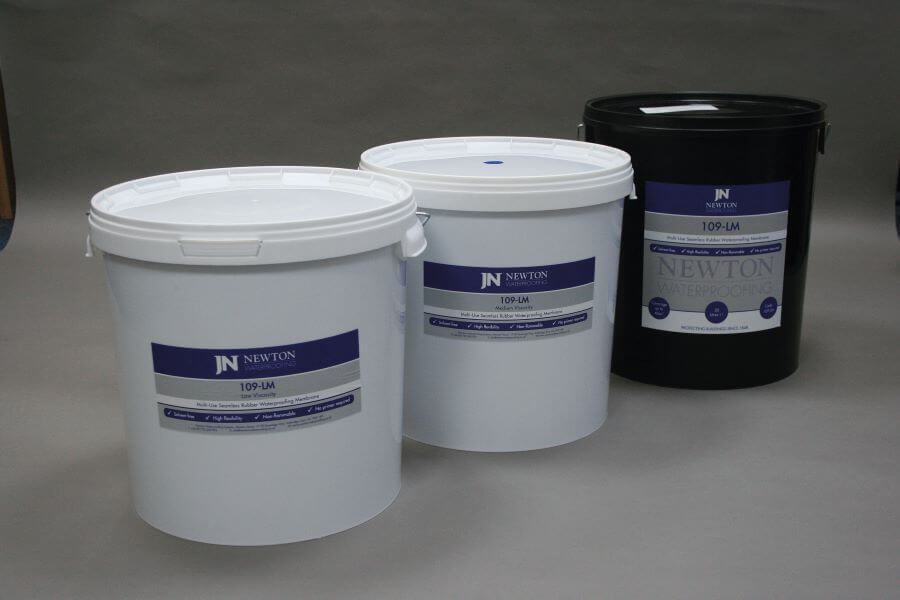

Newton HydroBond 109-LM Rubber Waterproofing Membrane – 20 Litre Tub

Brand: Newton Waterproofing Systems
Product Code: 109MV
In Stock

Newton HydroBond 109-LM is a flexible, single-component, cold-applied and seamless rubber waterproofing membrane used for the external waterproofing of earth-retaining structures such as basements and foundation walls. The membrane is extremely puncture resistant with elasticity of 850% and a 95% recovery memory.

£204.50 incl. VAT
£170.42 excl. VAT

Qty:

Liquid-Applied Rubber Waterproofing Membrane. Newton HydroBond 109-LM is a flexible, single-component, cold-applied and seamless rubber waterproofing membrane used primarily for the external waterproofing of earth-retaining structures such as basements and foundation walls.

Newton HydroBond 109-LM is extremely puncture resistant with elasticity of 850% and a 95% recovery memory. The membrane becomes fully engaged into the substrate to prevent water tracking and is suitable for all below ground and earth-retained structures, ranging from domestic basements to the largest civil engineering projects.

HydroBond 109-LM is also a constituent product of the Newton HydroBond® System supported by BDA Agrément Certificate BAB 16-031/04/A and is accepted by the NHBC as a suitable waterproofing system for Type A Waterproofing to Grades 1a, 1b, 2 & 3 – BS 8102:2022.

Key Benefits

  • Fully-bonded seamless membrane.
  • Good elasticity with no shrinkage.
  • Primer not required for most substrates.
  • Vapour barrier.
  • Solvent free, non-toxic and odourless.
  • Non-flammable – No VOCs.
  • High radon gas resistance.

*When catalysed with Newton 109-LM Catalyst

Typical Applications

  • Waterproofing of retained structures, together with HydroBond 403 Plus.
  • Standalone waterproofing membrane for basement, foundation and earth-retained walls.
  • Used as a detailing membrane or where access is too tight to spray HydroBond 108-LM.
  • Loading-capable, liquid DPM connecting wall waterproofing membrane to internal skin DPC.

Suitable Substrates:

Correctly prepared substrates of:

  • Concrete of at least 20 kN
  • Block and brick

Suitable Surfaces:

  • Walls – Positive pressure
  • Soffits as a primer for Type C tapes
  • Horizontally at slab edge toe and other termination details at ground level
Features Result Units
Form Liquid
Colour Brown
Density / Specific gravity 1.03
Packaging – Bucket 20 litres
Shelf life 12 months
Pot life N/A
Application rate in 2 to coats – Detailing 3.2 Litres/m2
Application rate in 2 coats – Ground moisture – No water pressure -BS EN 15814 4.8 Litres/m2
Application rate in 2 coats – Waterproofing – BS EN 15814 6.4 Litres/m2
Application method Brush, roller & airless spray
Application temperature +5 to +40 ºC
Service temperature -15 to +40 ºC
Odour Slight resinous odour
VOC Does not contain solvents
pH 11 – 13
Curing*** 5ºC 10ºC 15ºC 20ºC 25ºC Units
Ready for next coat**** 24/0.1 12/0.1 2/0.1 0.4 0.2 Hours
To not be adulterated by rain**** 24/0.1 12/0.1 1/0.1 0.5 0.5 Hours
Ready for temporary foot traffic / protection boards**** 24/4 12/3 2/2 1 1 Hours
Ready for flood / hosepipe test 48 24 4 3 2 Hours
Fully cured 48 25 8 5 3 Hours
Cured Performance Results Units Test Method
Colour Black
Membrane thickness – Detailing 2.0 mm
Membrane thickness – Ground Moisture – No water pressure 3.0 mm
Membrane thickness – Waterproofing 4.0 mm
Density / Specific gravity (no reinforcement) 1.1
Softening temperature > 130ºC Ring & Ball
Adhesion to concrete 0.62 N/mm2 DIN 53232
Tensile strength & elongation at break (reinforced) 0.68 N/mm² EN ISO 527-3:1995
Tensile strength & elongation at break (reinforced) (aged) 0.58 N/mm² EN ISO 527-3:1995
Loading capability (no reinforcement) – Class 1 0.06 MN/mm2 EN 15815
Resistance to static indentation (reinforced) 250 N EOTA TR007:2004
Crack bridging ability (no reinforcement) – Class CB2 ≥2 mm
Resistance to fatigue movement – 1000 actions @ -10ºC Pass EOTA TR008:2004
Dimensional stability at high temperature – no dripping ≥70 ºC EN 15818
Low temperature flexibility @ -10ºC Pass DIN 52123
Flexibility at low temperature @ 0ºC Pass EN 15813
Water vapour diffusion resistance – Sd value 72.4 m BS EN 1931
Water vapour diffusion resistance – µ value 36200 µ Calculation from Sd value
Water vapour diffusion resistance 362 MNs/g Calculation from Sd value
Water tightness 7 bar ISO=DIS 7031
Water resistance – 21 days at 21ºC Watertight EN 15817
Impact resistance after UV-ageing – 1000h – 10 mm Pass EN 12691:2001
Radon gas diffusion resistance (1 mm membrane) 2.1 x 10-11 m2/s K124/0295
Reaction to fire classification Euroclass B2 DIN 4102-1
