Newton HydroCoat Monoflex Construction Joint Sealing – 100mm x 20m

Brand: Newton Waterproofing Systems
Product Code: HS-MF-100
In Stock

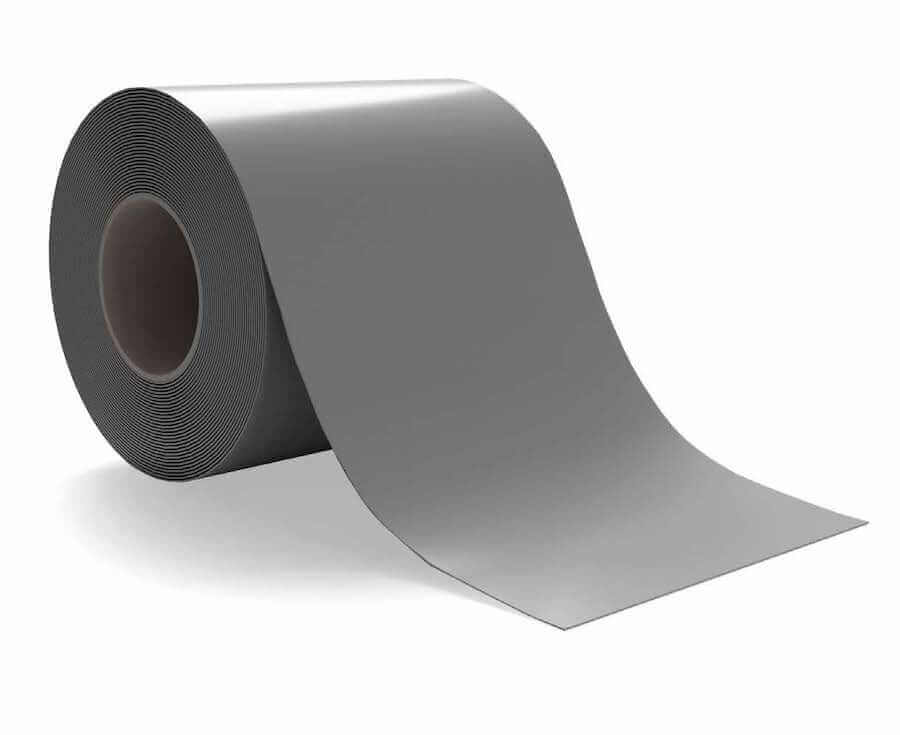

Newton HydroCoat Monoflex is a high performance joint sealing system, consisting of tape and an adhesive. Monoflex is supplied in 100mm x 20m rolls.

£209.36 incl. VAT
£174.47 excl. VAT

Qty:

High Performance Construction Joint Sealing.

A high performance joint sealing system for construction, movement and expansion joints. Newton HydroCoat Monoflex is particularly suitable in critical areas where irregular, high and/or frequent movement might be expected, as it is able to accommodate the movement whilst maintaining the waterproof seal over the joint.

The system consists of the HydroCoat Monoflex waterproofing tape, manufactured from a flexible polyolefine (FPO) which is installed to the substrate with the suitable Newton HydroCoat Monoflex Adhesive.

The HydroCoat Monoflex system is an ancillary within the Newton HydroCoat System, an internal Type A waterproofing solution for projects that require an internally applied system to resist water ingress.

Key Benefits:

HydroCoat Monoflex waterproofing tape:

  • Waterproofs construction joints that are subject to extreme movement
  • Easy and quick to install and repair
  • Excellent adhesion to different substrates with HydroCoat Monoflex Adhesive
  • Resistant to high water pressure (≥ 4.0 bar)
  • Applicable on dry and damp concrete

Typical Applications:

Sealing of construction joints, movement joints, pipe penetrations, and cracks in all types of below-ground and water-retaining structures, such as:

  • Basements
  • Tunnels, culverts and hydroelectric plants
  • Swimming pools
  • Sewage and water treatment plants
Performance HydroCoat Monoflex Units
Colour Grey
Material Flexible polyolefine
Width 100 /200 mm
Length 20 m
Area 2 / 4 m2
Thickness 1.0 mm
Weight 930 g/m2
Packaged weight 1.86 / 3.72 kg
Shelf life 12 Months
Resistance to temperature – min/max -30 to +90 ºC
Installed Performance Result Units Test Method
Tear resistance – Lengthwise 15 N/mm2 DIN EN 12311-2 (Version B)
Tear resistance – Across 15 N/mm2 DIN EN 12311-2 (Version B)
Elongation at break – Lengthwise 620 % DIN EN 12311-2 (Version B)
Elongation at break – Across 670 % DIN EN 12311-2 (Version B)
Tear resistance (nail shank) – Lengthwise 260 N DIN EN 12310-1
Tear resistance (nail shank) – Across 260 N DIN EN 12310-1
Water vapour permeability 60 m DIN EN 1931 (Version B)
UV-Resistance min. ≥ 6500 h DIN EN ISO 4892-3
Shore A hardness Approx 87
Bonding strength ≥ 4.0* N/mm2 DIN EN 1348
Peel test on wood carrier ≥ 100* N
Water tightness – 60 kPa/24 Std Watertight DIN EN 1928-A
Water tightness – 400 kPa/72 Std Watertight DIN EN 1928-B
Burst pressure ≥ 4.0 bar
Reaction to fire Class E DIN ISO 11925-2
EN 13501-1
