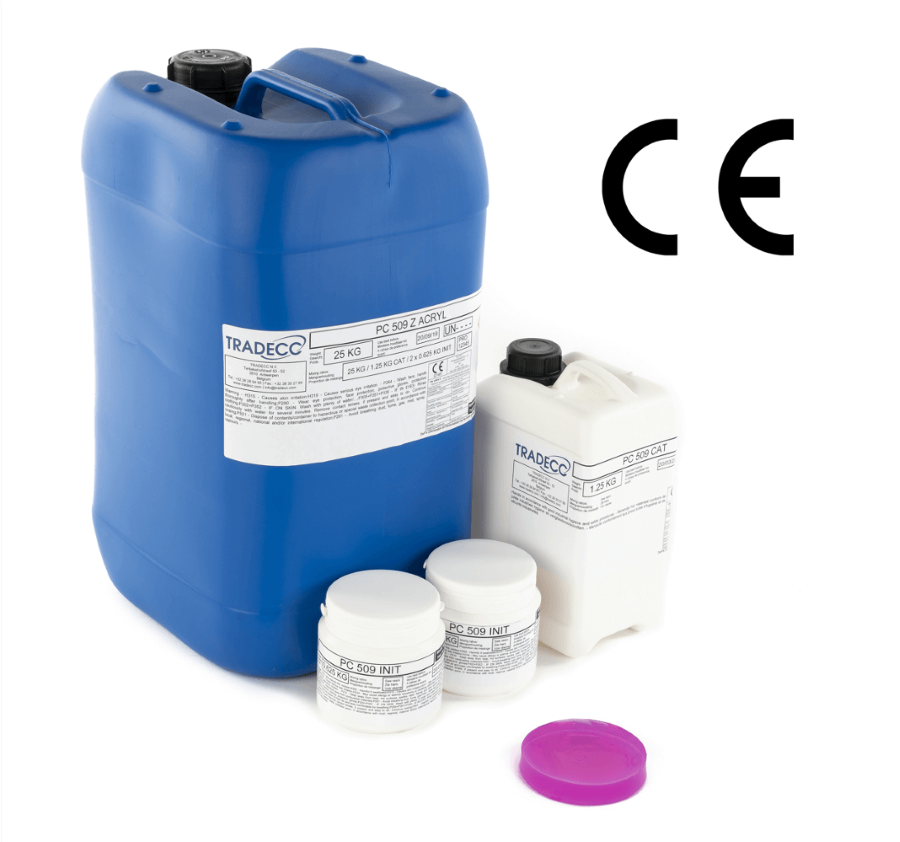

Tradecc PC 509 Z Acryl is a 4-component, elastic, acrylic injection resin with low viscosity for the water sealing of cracks and voids in walls, floors, concrete constructions and underground structures.
Applications:
- Water sealing of cracks and voids in walls, floors, concrete constructions, underground structures
- Can be used in constructions that are not permanently in contact with water (fluctuating ground water level)
- Injection of very fine cracks
Properties:
- Reacts into an elastic, durable gel
- Good general chemical resistance
- Does not contain acrylamide, methacrylamide, formaldehyde or solvents
- Non-flammable
- Excellent adhesion on mineral building materials such as concrete, cement and brick
- Suitable for absorbing shrinkage and expansion of injected cracks and voids caused by temperature fluctuations
- The reaction speed can be adjusted from a few seconds to several minutes
- High water retention capacity: when the injected cracks dry out due to temperature or ground water level fluctuations, the gel will not crack easily
- The cured gel has excellent durability in wet-dry cycles
| MIXING RATIO |
|
SOLUTION 1 |
SOLUTION 2 |
| 1:1 by volume |
PC® 509 Z Acryl Resin with
PC® 509 Acryl Catalyst |
PC® 509 Acryl Initiator with water |
| TECHNICAL DATA (Typical Values) |
|
RESIN |
CATALYST |
INITIATOR |
| Colour |
Purple-pink liquid |
Clear yellow liquid |
White powder |
| Viscosity (20 °C) |
19 mPas |
7 mPas |
|
| Density (20 °C) |
1.15 g/cm3 |
1.04 g/cm3 |
|
| pH |
6.5 – 8 |
|
|
| % Active parts |
42 % – 48 % |
|
|
| Compatible with water |
Yes |
Yes |
Soluble |
| Packaging |
25 kg |
2.5 kg |
2 x 0.625 kg |
|
Standard |
Value |
| Minimum application temperature |
|
5°C |
| Elongation at break |
|
> 50% |
| Watertightness under pressure |
EN 14068 |
Waterproof at 2 x 10⁵ Pa |
| Compatibility with concrete |
EN 12637-1 |
Pass (compatible) |
| Sensitive for wet-dry cycles |
EN 14498 B |
No change in swelling capacity after 10 wet-dry cycles * |
| Swelling capacity under water |
EN 14498 A |
The swelling capacity reaches a constant level |
| Increase of volume by conservation under water |
EN 14498 |
150 % after 7 days of immersion in water at 21 °C |
*A wet-dry cycle consists of 1 day of drying at 50 ° C, followed by 6 days of immersion in water at a temperature of 21 ° C
| REACTION TIMES AT 20 °C |
| SOLUTION 1 |
SOLUTION 2 |
|
| Resin |
Catalyst |
Initiator |
Water* |
|
| Kg |
Litre |
Kg |
Litre |
Kg |
Kg |
Litre |
Reaction time at 20 °C |
| 25 |
21.74 |
2.50 |
2.40 |
1.25 |
24.14 |
24.14 |
24 sec |
| 25 |
21.74 |
2.50 |
2.40 |
1.00 |
24.14 |
24.14 |
31 sec |
| 25 |
21.74 |
2.50 |
2.40 |
0.75 |
24.14 |
24.14 |
40 sec |
| 25 |
21.74 |
2.50 |
2.40 |
0.625 |
24.14 |
24.14 |
44 sec** |
| 25 |
21.74 |
2.50 |
2.40 |
0.50 |
24.14 |
24.14 |
56 sec |
| 25 |
21.74 |
2.50 |
2.40 |
0.25 |
24.14 |
24.14 |
1 min 12 sec |
*This is an approximate value as the volume of the initiator has not been taken into account.
**Standard composition.
