Newton DampSafe 603 Tile D-Mat Decoupling Membrane - 1m x 30mNewton DampSafe 603 Tile D-Mat Decoupling Membrane - 1m x 30m

Newton DampSafe 603 Tile D-Mat Decoupling Membrane – 1m x 30m

Brand: Newton Waterproofing Systems
Product Code: M7
In Stock

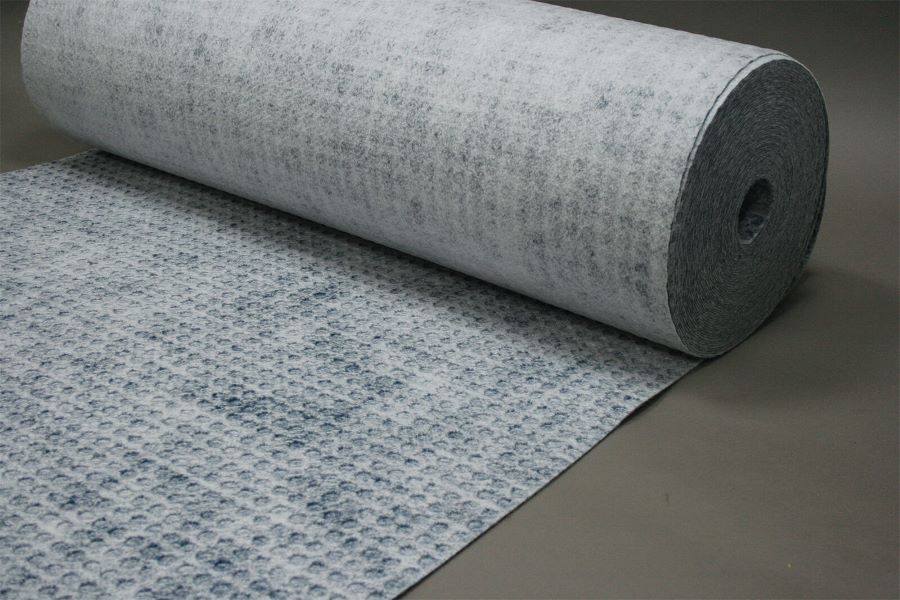

Newton DampSafe 603 Tile D-Mat is a 3mm decoupling mat that isolates the tiled floor surface from cracking or movement in the substrate and relieves compressive stress acting on specific points on the floor.

£286.38 incl. VAT
£238.65 excl. VAT

Qty:

3mm decoupling mat for tiling floors. Newton DampSafe 603 Tile D-Mat is a 3mm decoupling mat that isolates the tiled floor surface from cracking or movement in the substrate and relieves compressive stress acting on specific points on the floor.ย

The dimpled membrane also ventilates the substrate below to equalise vapour pressure. The fleece surfaces quickly absorb adhesives to provide an exceptional bond to both the substrate below and the tiled floor above. The material is also elastic and highly impervious to the diffusion of water vapour.ย

Key Benefits:ย

  • Accommodates movement and prevents the transfer of stresses from the substrate to the tiled surfaceย
  • Low thermal conductivity of 0.0369 W/mK (Watts per metre-Kelvin)
  • Adds only 3mm to the floor finishesย
  • Effective air and vapour barrier if joints are sealedย
  • Lightweight and easy to installย
  • Load-bearing, tough and durable

Typical Applications:

  • Decoupling of the tiled floor from the substrate belowย
  • Tiled or paved floorsย
  • Floor builds that include underfloor heating systemsย

Suitable Substrates:ย

  • -Solid floors of concrete or screedย
  • -Ventilated timber floorsย

Substrates for Newton 603 Tile must be structurally sound, dry, level, clean, suitable for problem-free tile installation and in conformance with all applicable standards. Screed substrates must have dried to a moisture content of < 2 % (CM test) in accordance with DIN 18365.

When installing over absorbent substrates, observe all relevant instructions of the adhesive manufacturer.ย

If substrate levelling is required, complete before beginning installation of the uncoupling bed, also observing all processing instructions of the levelling compound manufacturer.

Packaging:ย

  • Roll size: 30 m x 1 m (30 mยฒ)ย
  • Pallet: 8 rolls (240 mยฒ)
Features Result Units
Dimpled sheet material Low Density Polyethylene
Fleece material Polypropylene
Dimpled sheet colour Blue
Fleece colour White
Width 1.00 m
Length 30.00 m
Area 30.00 m2
Overall product thickness Approx 3.40 mm
Area weight Approx. 550 g/m2
Packaged weight 17.00 kg
Dimple height Approx. 3.00 mm
Dimple spacing Approx. 2500 per m2
Air gap between dimples Approx. 1.56 l/m2
Installation temperature range No restriction*
Service temperature range – 40 to + 80 ยฐC
Thermal conductivity 0.0369 W/mK
Resistance to fire (EuroClass) – BS EN 13501-1 F – Not tested
