Newton CDM 508 Mesh Cavity Drain Membrane – 2m x 20m

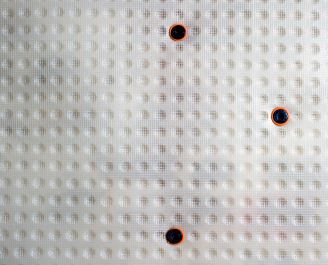

8mm Meshed Cavity Drain Basement Wall Membrane. Newton CDM 508 Mesh is a high quality, 8mm meshed cavity drain waterproofing membrane for use within the Newton CDM System, Newton’s internally applied waterproofing system that also includes drainage and pumping systems. A strong polyethylene mesh is thermally welded to the face of the membrane during manufacturing to provide a key for plasters and renders.

CDM 508 Mesh is suitable for the waterproofing of earth retained walls and vaulted soffits and is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Agrément Certificate 22/6357.

CDM 508 Mesh is inert and non-polluting to drinking water, highly resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof, and resistant to bacteria, fungi and small organisms.

Key Benefits

• Does not require extensive and damaging preparation to the wall surface Speed of installation
• Capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022
• Meshed surface for application of plasters/renders

Typical Applications:

As part of the Newton CDM System for below ground waterproofing applications:

• Walls
• Vaults
• Tunnels

SUITABLE SUBSTRATE – WALLS

• Concrete
• Brick
• Concrete block
• ICF – With special longer fixing plugs

SUITABLE SUBSTRATE – SOFFITS

• Concrete – To fall
• Brick – Arched or vaulted
